当RouterOS作为网关,并在RouterOS的内口配置多个IP地址段(通常用于VLAN区分不同的办公段、核心设备或区域划分)连接多个IP子网段,当我们需要控制多个IP网段之间的访问时,需通过防火墙filter来完成。通过下面一个简单实例介绍:

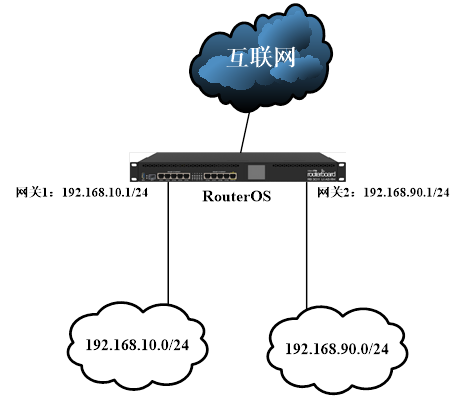

RouterOS内网有192.168.10.0/24和192.168.90.0/24两个网段,网关都配置在RouterOS内口ether2和ether3,IP地址配置:

/ip address

add address=192.168.10.1/24 interface=ether2

add address=192.168.90.1/24 interface=ether3



由于两个网段涉及特殊业务,不能相互访问,需要通过防火墙filter控制两个段的互访问控制IP段访问,进入ip firewall filter中添加一条forward规则为:

/ip firewall filter add chain=forward src-address=192.168.10.0/24 dst-address=192.168.90.0/24 action=drop



但在网络里希望192.168.10.8/32的主机访问192.168.90.0/24的网络

/ip firewall filter add chain=forward src-address=192.168.10.8/32 dst-address=192.168.90.0/24 action=accept



查看fliter配置

[admin@MikroTik] /ip firewall filter> print

Flags: X – disabled, I – invalid, D – dynamic

 0  chain=forward action=drop src-address=192.168.10.0/24 dst-address=192.168.90.0/24 log=no log-prefix=””

 1  chain=forward action=accept src-address=192.168.10.8/32 dst-address=192.168.90.0/24 log=no log-prefix=””



通过move命令将允许192.168.10.8主机访问192.168.90.0/24段规则移动到序列最上,即”0”,优先执行,将1规则移动到0

[admin@MikroTik] /ip firewall filter> move 1 0

[admin@MikroTik] /ip firewall filter> print

Flags: X – disabled, I – invalid, D – dynamic

0    chain=forward action=accept src-address=192.168.10.8/32 dst-address=192.168.90.0/24 log=no log-prefix=””

1    chain=forward action=drop src-address=192.168.10.0/24 dst-address=192.168.90.0/24 log=no log-prefix=””
